A cracked, loose, or missing battery door may seem like a minor problem, but leaving the battery compartment exposed can allow dust, dirt, and other debris to collect around the battery area. A damaged door may also make it harder to store or carry the camera securely.
Fortunately, replacing the battery door cover on a compatible Nikon DSLR is generally a straightforward repair. You normally do not need to disassemble the camera body or remove internal electronic components. The most important part is identifying the hinge mechanism, positioning the replacement cover correctly, and avoiding excessive force.
This guide explains how to remove a damaged battery door and install a replacement battery door cover on the Nikon D7500, D7200, and D7100. The same replacement cover is also compatible with the Nikon D610, D600, and D7000.
Quick Answer: Can You Replace a Nikon Battery Door Yourself?
Yes. If only the removable battery door is damaged or missing—and the hinge mounts on the camera body are still intact—you can usually replace it yourself without opening the camera body.
The installation should require only light, controlled pressure. If the new cover does not align correctly, stop and check the orientation, hinge position, and camera model before trying again.
When Should You Replace Your Nikon Battery Door Cover?
A Nikon camera battery door can become damaged through repeated use, impact, improper handling, or pressure inside a crowded camera bag. The small hinge components may also wear or break over time.
Consider replacing the battery door if you notice any of the following problems:
The battery door is cracked or visibly bent.
One of the hinge tabs or pins is broken.
The cover feels loose when opened.
The door does not sit flush with the bottom of the camera.
The latch no longer holds the cover closed.
The spring no longer assists the opening movement.
The battery door has fallen off or is missing.
The battery compartment remains exposed during storage.
Before ordering a replacement, inspect the camera body carefully. If the removable cover is damaged but the hinge sockets on the camera remain intact, replacing the door may solve the problem. If the camera-side hinge mount is cracked or missing, installing a new cover alone may not be enough.

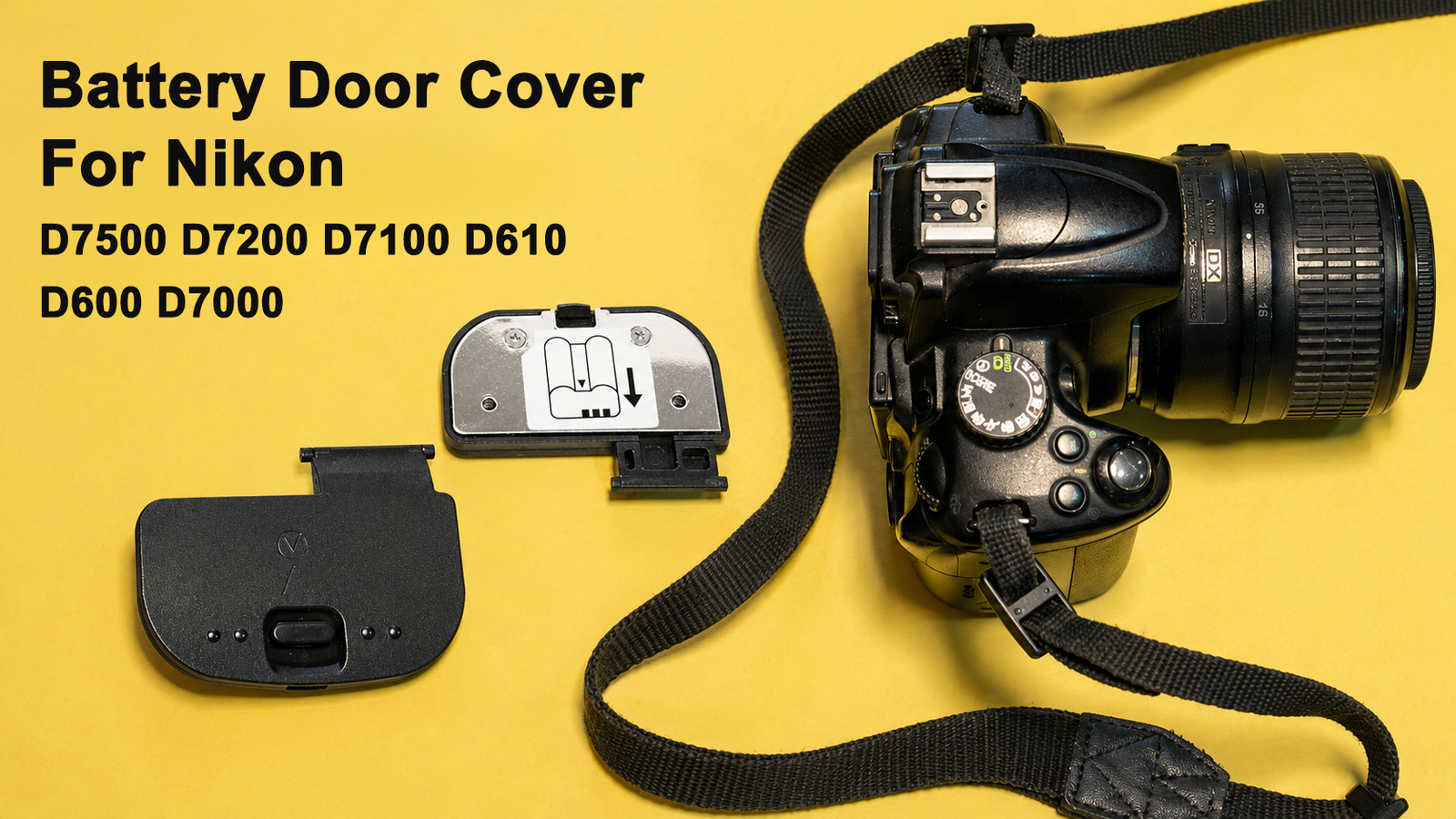

Nikon Battery Door Cover Compatibility
The replacement battery chamber cover discussed in this guide is compatible with the following Nikon digital cameras:
Nikon D7500
Nikon D7200
Nikon D7100
Nikon D610
Nikon D600
Nikon D7000
Always check the model name printed on the camera body before beginning the repair. Similar-looking Nikon cameras may use battery doors with different dimensions, hinge locations, or latch designs.
Do not select a replacement part based only on its general shape. The hinge and latch must match the camera model for the door to open, close, and remain attached correctly.
What You Need Before Installing the Battery Door
This is usually a tool-free installation. However, preparing a clean work area makes it easier to handle the small hinge components safely.
You may need:
A compatible replacement battery door cover
A clean microfiber cloth
A bright, stable work surface
A plastic opening tool, if light guidance is necessary
A small parts tray for any loose fragments from the damaged door
Avoid using a knife, screwdriver, or other sharp metal object to pry at the hinge. Metal tools can scratch the camera body, damage the plastic mounting points, or slip into the battery compartment.
Before You Begin
Turn the camera off before opening the battery compartment or removing the battery. Nikon’s D7500 instructions specifically direct users to place the power switch in the OFF position before inserting or removing a battery.
Remove the lens if it makes the camera difficult to position, and install the camera body cap to keep dust away from the lens mount. Place the camera upside down on a clean, padded surface so that you can see the battery compartment clearly.
Do not begin the installation while the camera is mounted on a tripod, connected to a cable, or powered by an external power source.
How to Remove the Damaged Nikon Battery Door Cover
If the original door is still attached, remove it carefully before installing the replacement.
Step 1: Turn Off the Camera
Move the camera’s power switch to OFF. Wait for the memory card access light to turn off before continuing.
Turning off the camera helps protect your files and prevents interruption while the camera is accessing the memory card.
Step 2: Open the Battery Compartment
Slide the battery door latch and open the cover normally. Do not force the door beyond its natural range of movement.
If the latch is broken and the door will not open normally, avoid pushing a metal tool into the seam. Use a plastic tool only if necessary, and apply pressure to the door rather than the surrounding camera housing.
Step 3: Remove the Battery
Press the internal battery latch in the appropriate direction and allow the battery to rise from the compartment. Remove it by hand and place it on a clean, dry surface.
Never attempt to replace the door while the battery is still inside the camera.
Step 4: Examine the Hinge
Look closely at the point where the battery door attaches to the camera. The door is secured by small hinge pins or tabs that fit into corresponding sockets on the camera body.
Before pulling on the cover, identify:
The hinge side of the door
The latch side of the door
The visible hinge pins or tabs
Any broken pieces around the mounting area
The direction in which the old cover can be released
If possible, take a close-up photograph before removing the damaged door. The photograph can serve as a reference when positioning the replacement.
Step 5: Release the First Hinge Point
Hold the battery door close to the hinge rather than gripping it at the outer edge. Open the door to a partially open position—usually around 45 to 60 degrees—so the hinge can move without placing unnecessary stress on the cover.
Gently shift or guide the door toward one side until the first hinge pin is released from its socket. The exact amount of movement may vary slightly depending on the camera model and the condition of the old door.
Do not twist the entire cover or bend it sharply.
Step 6: Remove the Second Hinge Point
After the first hinge point is free, carefully lift or slide the remaining hinge pin out of its socket. The door should separate from the camera without requiring significant force.
If it does not release, return it to the previous position and inspect the hinge again. Pulling harder can break the camera-side mounting point, turning a simple replacement into a more complicated repair.
Clean and Inspect the Battery Door Hinge Area
Once the old cover has been removed, inspect the battery compartment and hinge area before installing the new part.
Use a dry microfiber cloth or a soft air blower to remove loose dust. Do not use water, cleaning spray, or household chemicals near the battery contacts.
Check for:
Broken plastic pieces
Bent hinge components
Dirt inside the hinge sockets
Damage to the battery door latch
Cracks in the camera body
Corrosion or moisture near the battery compartment
The replacement cover depends on the camera’s hinge mounts and latch being intact. If either mounting point is severely damaged, the new battery door may remain loose or fail to close.
How to Install the Replacement Nikon Battery Door Cover
After confirming that the camera-side mounting points are undamaged, you can install the new cover.
Step 1: Compare the New Door with the Old Door
If you still have the original cover, place both parts next to each other and compare them.
Confirm that the replacement has matching:
Overall dimensions
Hinge location
Hinge-pin spacing
Latch position
Interior and exterior orientation
Spring mechanism
The outside of the replacement door should face away from the battery compartment. The metal-backed side and printed battery-direction label should face inward.
Step 2: Hold the Replacement Door in the Open Position
Position the new door near the battery compartment as though it were already attached and open.
Do not attempt to install the cover while it is positioned flat against the camera. Holding it partially open gives you better access to the hinge and makes it easier to align the pins.
Step 3: Seat the First Hinge Pin
Align one hinge pin or tab with its corresponding socket on the camera body. Gently guide it into place.
Make sure the pin is fully seated before continuing. If the pin rests on top of the socket rather than inside it, pressing the other side into place may damage the hinge.
Step 4: Align the Second Hinge Pin
While keeping the first side seated, move the opposite hinge point into alignment.
Apply only enough controlled pressure to guide the second pin into its socket. Press near the hinge rather than pushing on the middle or outer edge of the door.
Do not sharply bend the battery door. The hinge should fit through correct alignment, not through force.
Step 5: Check the Spring Movement
Once both hinge points are seated, move the cover slowly through its normal opening range.
The door should:
Remain attached at both hinge points
Move without scraping the camera body
Open smoothly
Stay properly aligned
Respond normally to the spring mechanism
If the door feels stuck or uneven, stop and inspect the hinge. One side may not be completely seated.
Step 6: Reinstall the Battery
Insert the battery in the correct orientation and make sure the internal battery latch holds it in place.
Keep your fingers clear of the battery contacts and avoid touching them with tools.
Step 7: Close and Lock the Battery Door
Lower the replacement cover over the battery compartment. Press it gently into position and operate the latch.
The door should sit close to the surrounding camera body without a large gap. The latch should move into its locked position without excessive pressure.
Step 8: Perform a Final Test
Turn the camera upright and check the battery door from several angles.
Confirm that:
Both hinge points remain attached.
The door opens and closes smoothly.
The latch stays in the locked position.
The cover does not move when lightly touched.
The battery door sits evenly against the camera.
The camera powers on normally.
Open and close the door two or three times before returning the camera to regular use.
Common Nikon Battery Door Installation Mistakes
Although this repair is relatively simple, small installation mistakes can damage the replacement part or the camera-side hinge.
Installing the Door in the Wrong Direction
The latch, spring, and hinge must face the correct sides of the battery compartment. Compare the replacement with the original door or product photographs before applying pressure.
Forcing the Hinge Pins into Place
If a pin does not line up with its socket, pressing harder is unlikely to solve the problem. Reposition the door and try again using a slightly different open angle.
Pressing on the Center of the Cover
Pressure should be applied close to the hinge during installation. Pushing down on the center of the cover can flex or crack the plastic.
Using Sharp Metal Tools
Screwdrivers and knives can scratch the camera or damage the hinge sockets. This installation normally does not require metal tools.
Forgetting to Remove Broken Pieces
A fragment from the original door can prevent the replacement hinge from seating completely. Inspect and clean the mounting area before installing the new cover.
Testing the Latch Before Seating the Hinge
Do not attempt to close the door until both hinge points are fully attached. Closing a partially installed cover can bend the hinge or damage the latch.
What to Do If the Replacement Battery Door Does Not Fit
If the new Nikon battery door cover does not install smoothly, do not immediately assume that more force is necessary.
The Hinge Pins Will Not Align
Confirm the exact camera model and verify that the door is facing the correct direction. Check the hinge sockets for broken plastic or debris.
The Door Falls Off When Opened
One hinge pin may not be completely seated. Remove the cover carefully and repeat the installation, making sure the first pin remains in its socket while you align the second.
The Door Will Not Close
Check that the battery is fully inserted and held by the internal battery latch. Then inspect the replacement door for incorrect alignment around the hinge or latch.
The Door Closes but Feels Loose
Open the compartment and confirm that both hinge pins are attached. If they are seated correctly, inspect the camera-side hinge mounts and locking area for damage.
The Door Does Not Sit Flush with the Camera
Do not attempt to flatten the cover by pressing harder. The part may be installed incorrectly, a hinge pin may be outside its socket, or the camera-side mount may be damaged.
Choosing the Right Nikon Battery Door Replacement
A replacement battery door should do more than cover the opening. It needs to match the camera’s hinge and latch positions so that it can remain attached through repeated battery changes.
When selecting a Nikon battery compartment cover, look for:
Clearly stated camera compatibility
Accurate hinge and latch placement
Solid plastic construction
Metal reinforcement where required
A functional battery door spring
Smooth opening and closing
A complete, ready-to-install assembly
Avoid choosing a door only because it looks similar to the original. A small difference in hinge spacing can prevent proper installation.
PhotoTrust Battery Door Cover for Nikon DSLR Cameras
If the battery door on your Nikon camera is broken, loose, or missing, the PhotoTrust Battery Door Cover Lid Cap provides a practical replacement for restoring the battery compartment.
The replacement part is compatible with Nikon D7500, D7200, D7100, D610, D600, and D7000 digital cameras. It combines plastic and metal components for a solid structure and includes a battery door spring to support easier opening and closing.
Key product features include:
Because this is a model-specific component, confirm the full model name on your camera before ordering.
Why Choose PhotoTrust for Camera Replacement Parts?
PhotoTrust provides practical replacement components for photographers who want to repair, maintain, or restore their camera equipment.
Small exterior parts such as battery doors can become difficult to find after a camera has been on the market for several years. PhotoTrust helps photographers keep compatible cameras in service by offering clearly identified replacement parts for specific models.
Whether you are repairing your personal camera, restoring a used DSLR, or replacing a part that disappeared during travel, selecting a compatible component can make the repair process simpler and more predictable.
Nikon Battery Door Replacement FAQ
Does this replacement battery door fit the Nikon D750?
No. The Nikon D750 is not included in the stated compatibility list. This replacement is designed for the Nikon D7500, D7200, D7100, D610, D600, and D7000.
The Nikon D750 and D7500 are different camera models and should not be treated as interchangeable.
Do I need to remove screws to replace the battery door?
Normally, no. The removable battery door attaches through its hinge points and does not require the camera body to be disassembled.
Can I install the battery door without removing the battery?
The battery should be removed first. This gives you more room to inspect the compartment and prevents the battery from interfering with the installation.
Why will my new battery door not close?
The hinge may not be fully seated, the door may be positioned incorrectly, or the battery may not be completely inserted. Check each area before applying additional pressure.
Can a new battery door repair a broken camera-side hinge?
No. A replacement cover can replace a damaged or missing removable door, but it cannot rebuild broken hinge sockets on the camera body.
Does a replacement battery door make the camera waterproof?
No. The battery door helps close and protect the compartment, but it should not be treated as a guarantee of waterproofing or restored factory weather resistance.
Is this battery door suitable for camera restoration?
Yes. It can be used to replace a missing or damaged cover when repairing a personal camera, refurbishing a used camera, or completing a restoration project—provided the camera-side hinge and latch remain intact.
Restore Your Nikon Camera with the Right Battery Door Cover
A broken battery door does not necessarily mean that your Nikon DSLR needs an expensive internal repair. When the camera-side hinge remains intact, installing a compatible replacement cover can be a manageable DIY project.
Work slowly, remove the battery before beginning, and never force the hinge pins into place. Once the replacement is properly aligned, check the opening movement, spring response, latch, and final fit before using the camera again.
The PhotoTrust Battery Door Cover Lid Cap is compatible with Nikon D7500, D7200, D7100, D610, D600, and D7000 cameras. With plastic and metal construction, an integrated spring mechanism, and a ready-to-install design, it offers a practical way to replace a cracked, loose, or missing battery compartment cover.
Restore the battery compartment and keep your Nikon camera ready for the next shoot with a compatible replacement part from PhotoTrust.
