Introduction
The Canon G7X Mark II has earned a reputation as one of Canon's most popular compact cameras. Loved by photographers, travelers, and content creators alike, it delivers impressive image quality in a lightweight body with a convenient flip-up LCD screen. However, that same articulating display is also one of the camera's most vulnerable components.
If your LCD suddenly goes black, flickers while opening the screen, displays strange colors, or stops responding altogether, the problem may not be the LCD panel itself. In many cases, the culprit is a damaged LCD flex cable, also known as a ribbon cable.
Because the LCD is opened and closed thousands of times during normal use, the flex cable constantly bends around the hinge mechanism. Over time, repeated movement can weaken the internal conductors, eventually leading to intermittent or complete signal failure.
Fortunately, replacing the LCD flex cable is often much more affordable than replacing the entire LCD assembly or sending the camera to a repair center. With the proper tools, patience, and careful handling, many photographers can successfully complete this repair themselves.
This comprehensive guide will explain:
What the LCD flex cable does
How to determine whether it's actually damaged
The tools you'll need before starting
A detailed step-by-step replacement procedure
Common repair mistakes to avoid
How to extend the life of your new LCD flex cable
Whether you're repairing your own camera for the first time or you're an experienced DIY technician, this guide is designed to help you complete the repair safely and confidently.

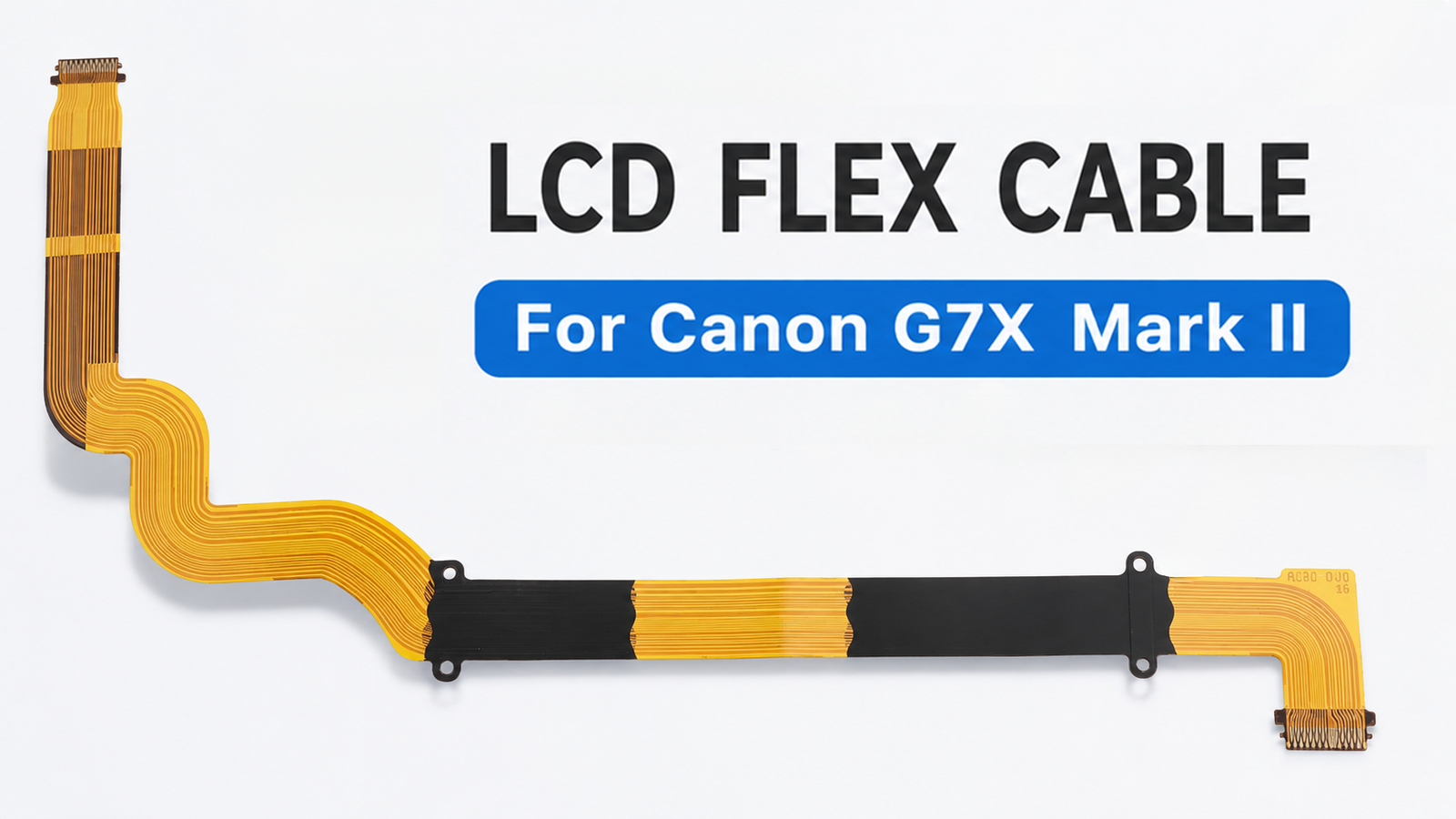

What Does the LCD Flex Cable Do?
The LCD flex cable is one of the most important internal components inside the Canon G7X Mark II. While it may appear to be nothing more than a thin strip of flexible plastic, it serves as the communication bridge between the camera's main circuit board and the LCD assembly.
This flexible printed circuit (FPC) carries several critical signals, including:
LCD display data
Touchscreen communication
Backlight power
Camera control signals
Display synchronization
Unlike traditional wiring, a flex cable is designed to bend repeatedly while maintaining reliable electrical connections. This flexibility is essential because the Canon G7X Mark II features a flip-up screen that rotates every time you compose selfies, record videos, or shoot from creative angles.
Unfortunately, every movement places mechanical stress on the cable.
After thousands of opening and closing cycles, tiny copper traces inside the ribbon cable can begin to fatigue. Even if the outer surface appears undamaged, microscopic fractures may interrupt signal transmission and cause unpredictable display problems.
Many users mistakenly assume that a black or flickering screen means the LCD panel itself has failed. In reality, the LCD panel is often perfectly functional, while the damaged flex cable prevents image data from reaching it.
Understanding this distinction can save both time and money during the repair process.
LCD Screen vs. LCD Flex Cable: What's the Difference?
One of the most common misconceptions among first-time DIY repairers is confusing the LCD screen with the LCD flex cable.
Although they work together, they are entirely different components.
If your LCD glass is cracked after dropping the camera, you'll likely need a new display.
However, if the screen only works in certain positions or occasionally comes back to life when moving the LCD, replacing the flex cable is usually the more appropriate solution.
Common Signs Your Canon G7X Mark II LCD Flex Cable Needs Replacement
A failing ribbon cable rarely stops working overnight. In most cases, the symptoms gradually become more noticeable over time.
Below are the most common warning signs.
Black Screen
The camera powers on normally, but the LCD remains completely black.
You may still hear startup sounds, autofocus, or shutter operation, indicating that the camera itself is functioning while the display receives no signal.
Screen Flickers When Opening or Closing the LCD
This is one of the clearest indicators of a worn flex cable.
The display may briefly return to normal when the screen is held at a certain angle, only to disappear again after slight movement.
Because the cable bends inside the hinge, damaged conductors can temporarily reconnect as the cable shifts position.
White Screen
Instead of displaying images, the LCD becomes completely white.
This usually indicates interrupted communication between the main board and the display module.
Colored Lines or Distorted Images
You may notice:
Vertical lines
Horizontal lines
Random colored streaks
Image tearing
Partial image display
Frozen frames
These symptoms often result from unstable data transmission caused by cracked traces inside the ribbon cable.
Intermittent Display Problems
Sometimes the screen works perfectly.
Minutes later, it suddenly goes blank.
After restarting the camera, it works again.
These inconsistent symptoms are classic signs of an internal flex cable beginning to fail.
Touchscreen Stops Responding
The Canon G7X Mark II touchscreen communicates through the same cable assembly.
If the display appears normal but touch controls no longer respond consistently, the ribbon cable should also be inspected.
Display Works Only at Certain Angles
If you find yourself adjusting the LCD position just to make the image appear again, the ribbon cable is almost certainly experiencing fatigue near the hinge.
This symptom rarely improves on its own and generally worsens over time.
How to Tell Whether the LCD Screen or the Flex Cable Is Actually Damaged
Before ordering replacement parts, it's worth spending a few minutes identifying which component is causing the problem.
Here are some quick guidelines:
Tools You'll Need Before Starting
Before disassembling your Canon G7X Mark II, gather all the necessary tools. Having the right equipment not only makes the repair easier but also significantly reduces the risk of damaging delicate internal components.
Essential Tools：
Pro Tip:
The Canon G7X Mark II uses several screws of different lengths. Mixing them during reassembly can damage the LCD assembly or even puncture internal components. Organize every screw according to its original location.
Before You Open the Camera
Taking a few minutes to prepare properly can prevent hours of frustration later.
1. Power Off the Camera Completely
Turn the camera off before beginning any repair.
Never disconnect internal ribbon cables while power is still present.
2. Remove the Battery
Remove the battery immediately after powering off the camera.
This eliminates the risk of accidental short circuits while working inside the camera.
3. Remove the Memory Card
Remove the SD card to avoid accidental damage or data loss during repair.
4. Work on a Clean, Static-Free Surface
Choose a clean, well-lit workspace.
Avoid carpets or blankets that generate static electricity.
If possible, wear an anti-static wrist strap connected to ground.
5. Photograph Every Step
This is one of the best habits professional repair technicians develop.
Before removing each component, take a clear photo with your phone.
These reference photos can save tremendous time during reassembly, especially when routing ribbon cables or reinstalling screws.
6. Organize Every Screw
Although many screws appear identical, they often vary by only 1–2 mm.
Installing the wrong screw in the wrong location can:
Crack the LCD frame
Damage the motherboard
Prevent the rear cover from closing properly
Strip plastic mounting posts
A magnetic parts tray or labeled screw mat is highly recommended.
Step-by-Step Canon G7X Mark II LCD Flex Cable Replacement
Take your time throughout the repair.
Never force any part to move.
If something doesn't separate easily, double-check for hidden screws or still-connected ribbon cables.
Step 1: Remove the Exterior Screws
Using a precision Phillips screwdriver, remove all visible exterior screws securing the rear housing.
Most screws are located around:
Bottom plate
Left side
Right side
Near the wrist strap mount
Around the LCD hinge area
As you remove each screw:
Keep screws separated by location.
Do not assume every screw has the same length.
Avoid over-tightening your screwdriver to prevent stripped screw heads.
Repair Tip:
Some screws may have thread-locking compound applied at the factory. Apply steady downward pressure while turning slowly to avoid damaging the screw head.
Step 2: Carefully Remove the Rear Cover
After removing every exterior screw, gently separate the rear housing.
Use only a plastic opening tool.
Never use a metal screwdriver to pry the housing apart.
Work slowly around the edges until the clips release.
Do not pull the rear cover away immediately.
Several ribbon cables may still connect the rear controls to the main board.
Common Mistake
Many first-time repairs fail at this stage because users pull the rear cover open too quickly.
Doing so can tear internal ribbon cables before they're even visible.
Always open the rear housing like opening a book and inspect inside first.
Step 3: Locate the LCD Assembly
With the rear housing removed, you'll now see the LCD assembly.
The LCD flex cable typically routes:
From the LCD module
Around the hinge mechanism
Into a small connector on the main PCB
Before disconnecting anything, observe:
Cable routing
Folding direction
Original bends
Cable orientation
Take several photos from different angles.
These images will make reassembly much easier.
Step 4: Unlock the Ribbon Cable Connector
This is the most delicate part of the entire repair.
The Canon G7X Mark II uses a micro flip-lock ZIF (Zero Insertion Force) connector.
The connector consists of two parts:
The connector body (fixed to the motherboard)
A tiny locking latch (hinged)
Only the locking latch should move.
The connector body must remain completely stationary.
How to Open the Connector Safely
Using a plastic spudger:
Locate the small hinged locking bar.
Gently lift the latch from both sides.
Raise it only about 90 degrees.
Never force it past its natural stopping point.
Once unlocked, the ribbon cable should slide out with almost no resistance.
If the cable feels stuck:
Stop immediately.
The connector is probably still locked.
Extremely Important Warning
Never Pull the Ribbon Cable Before Unlocking the Connector
Doing so can:
Tear the ribbon cable
Break the locking latch
Rip the connector off the motherboard
Damage PCB solder pads
Replacing a broken connector is far more difficult than replacing the flex cable itself.
Professional Tip
Many DIY repairs fail not because the replacement cable is defective, but because the tiny flip-lock connector was accidentally broken during removal.
Always remember:
Lift the latch—not the connector.
Step 5: Remove the LCD Hinge Assembly
After disconnecting the ribbon cable, remove the screws securing the LCD hinge.
Support the LCD while removing the final screw.
Do not allow the display to hang freely by the remaining cable.
Carefully guide the flex cable through the hinge channel.
Pay close attention to:
Original routing path
Fold direction
Twist orientation
These details are critical during installation.
Repair Tip
Do not create new folds in the ribbon cable.
Canon engineers designed specific bending points that distribute stress evenly.
Sharp bends or new creases can significantly shorten the life of your replacement cable.
Step 6: Install the New LCD Flex Cable
Before installation, compare the new flex cable with the original.
Verify:
Shape
Length
Connector orientation
Mounting holes
Fold locations
Feed the cable through the hinge exactly as the original was installed.
Avoid:
Twisting
Stretching
Folding backwards
Pinching beneath metal brackets
The cable should move naturally without tension.
Step 7: Insert the Ribbon Cable into the Connector
Slide the ribbon cable straight into the ZIF connector.
Do not force it.
The cable should insert smoothly.
Most ribbon cables include alignment marks that help indicate the correct insertion depth.
Once fully seated:
Gently press the locking latch back into position.
You should feel a light click.
Never press excessively.
The latch only needs enough pressure to secure the cable.
How to Know the Cable Is Fully Inserted
Before locking the connector:
The ribbon cable should sit perfectly straight.
The exposed contact pads should almost disappear into the connector.
Both edges should be inserted equally.
The cable should not tilt to either side.
If one side sits higher than the other, remove it and try again.
A partially inserted ribbon cable often causes:
Black screen
Flickering
White display
Touchscreen failure
Step 8: Test the Camera Before Full Reassembly
Do not reinstall every screw immediately.
Professional technicians always perform a functional test first.
Reconnect only the essential components.
Install the battery.
Power on the camera.
Check the following:
✓ LCD display turns on normally
✓ Brightness appears even
✓ No flickering
✓ Touchscreen responds correctly
✓ Menu navigation works
✓ Image playback functions properly
✓ Live View displays normally
✓ Flip screen moves smoothly without losing signal
Slowly open and close the LCD several times.
Watch carefully for any flickering or intermittent display loss.
If everything works correctly, power off the camera and proceed with final reassembly.
If the display remains blank, recheck the ribbon cable seating before assuming the replacement part is defective.
Final Reassembly
Once testing is successful:
Reinstall the rear housing.
Ensure no ribbon cables are pinched.
Tighten screws gradually.
Do not overtighten.
Reinsert the battery and SD card.
Perform one final functional test after the camera is fully assembled.
Expert Advice:
Tighten screws in stages using a crisscross pattern where possible. This helps distribute pressure evenly across the camera body and prevents unnecessary stress on the LCD frame and rear housing.
Common Repair Mistakes and How to Avoid Them
Replacing the LCD flex cable on a Canon G7X Mark II is not particularly difficult, but it does require patience and attention to detail. In our experience, most unsuccessful DIY repairs are caused by installation mistakes rather than defective replacement parts.
Below are the most common issues first-time repairers encounter—and how to avoid them.
Mistake 1: Breaking the Tiny Flip-Lock Connector
The most fragile component during this repair isn't the ribbon cable—it's the tiny locking latch on the motherboard connector.
The Canon G7X Mark II uses a micro ZIF (Zero Insertion Force) connector with a hinged locking bar. This latch is made of extremely thin plastic and can break if excessive force is applied.
How to Avoid It
Use only a plastic spudger.
Lift the locking bar gently from both sides.
Open the latch only until it naturally stops (approximately 90°).
Never pry underneath the entire connector body.
Never use metal tweezers or screwdrivers.
If the latch accidentally breaks, the ribbon cable may no longer stay securely seated, causing intermittent display problems even if the cable itself is brand new.
Expert Tip:
If you're unsure which part moves, examine the connector under good lighting or magnification before touching it. Spending an extra minute observing the connector can prevent hours of additional repair work.
Mistake 2: Pulling the Ribbon Cable Before Unlocking the Connector
This is one of the most common mistakes among beginners.
The ribbon cable should slide out almost effortlessly once the connector is unlocked.
If you feel resistance, stop immediately.
Forcing the cable out while the connector is still locked can:
Tear the ribbon cable
Break the locking latch
Lift the connector from the motherboard
Damage solder pads
Repairs involving damaged motherboard connectors are significantly more difficult and often require microsoldering equipment.
Mistake 3: Creating Sharp Creases in the New Flex Cable
Although ribbon cables are flexible, they are not designed to be folded arbitrarily.
The replacement cable should follow the exact routing path of the original.
Avoid:
Folding at new locations
Twisting the cable
Bending it beyond its natural curve
Compressing it under brackets or screws
Sharp creases can fracture the internal copper traces, reducing the lifespan of the new cable.
Mistake 4: Routing the Cable Incorrectly
The LCD flex cable travels through a narrow channel inside the hinge mechanism.
Improper routing may cause the cable to:
Rub against moving parts
Become pinched during reassembly
Stretch every time the LCD opens
Wear prematurely
Before removing the original cable, take several close-up reference photos showing:
Cable orientation
Fold direction
Entry points
Exit points
Hinge routing
These photos are often more valuable than memory alone.
Mistake 5: Mixing Screws During Reassembly
Canon cameras use multiple screw lengths—even screws located just a few centimeters apart may differ slightly.
Installing a screw in the wrong location can:
Crack plastic mounting posts
Damage the LCD frame
Press against internal circuit boards
Prevent the rear cover from fitting correctly
Best Practice
Arrange screws on a magnetic mat in the same pattern as they were removed, or label small containers according to each step of disassembly.
Mistake 6: Touching Connector Contacts with Bare Fingers
Fingerprints, oils, or dirt on the connector contacts can reduce electrical reliability.
Whenever possible:
Hold ribbon cables by the edges.
Avoid touching exposed gold contacts.
If necessary, gently clean the contacts with high-purity isopropyl alcohol and allow them to dry completely before installation.
Mistake 7: Forgetting to Test Before Closing the Camera
One of the biggest time-consuming mistakes is fully reassembling the camera before confirming that the repair was successful.
If the ribbon cable isn't fully inserted, you may have to remove every screw again just to reseat the connector.
Always perform a functional test before reinstalling the rear cover.
Troubleshooting After Installation
If your camera still doesn't work correctly after replacing the LCD flex cable, don't panic. Many issues can be resolved without replacing additional parts.
The LCD Remains Black
Possible causes include:
Ribbon cable not fully inserted
Connector latch not locked
Battery not fully charged
Incorrect cable orientation
Defective or incompatible replacement part
The Screen Flickers
Possible causes include:
Partial ribbon cable insertion
Cable twisted inside the hinge
Connector contaminated with dust or fingerprints
Cable under excessive tension
Touchscreen Doesn't Respond
Check that:
The touchscreen ribbon cable is properly connected.
The LCD flex cable is fully seated.
The connector latch is completely closed.
Camera Powers On but Display Is White
This usually indicates that display data is not reaching the LCD.
Inspect:
Ribbon cable seating
Connector alignment
Bent connector pins
Damage to the motherboard connector
Display Works Until the LCD Is Moved
This almost always indicates one of the following:
Cable routed incorrectly
Cable pinched inside the hinge
Ribbon cable partially inserted
Replacement cable damaged during installation
Before ordering another replacement part, reopen the camera and carefully inspect the cable routing.
How to Make Your New LCD Flex Cable Last Longer
A high-quality replacement cable can provide years of reliable service if treated properly.
Fortunately, a few simple habits can significantly extend its lifespan.
Open the LCD Gently
Avoid snapping the screen open or closed.
Smooth, controlled movement places far less stress on the ribbon cable.
Avoid Excessive Force
The flip-up screen is designed to rotate within a specific range.
Never force it beyond its intended travel.
Doing so can permanently stretch the flex cable.
Store the Camera with the Screen Closed
When transporting the camera, keep the LCD folded into its normal storage position.
This protects both the display and the hinge assembly from accidental impacts.
Keep the Hinge Area Clean
Dust and sand can increase friction inside the hinge mechanism.
Occasionally inspect the hinge area and gently remove debris using a blower or soft brush.
Protect the Camera from Drops
Even minor impacts can stress the hinge and ribbon cable.
Using a wrist strap or protective camera case is one of the easiest ways to reduce the risk of accidental damage.
Avoid High Heat and Humidity
Extreme temperatures and moisture can accelerate the aging of flexible printed circuits.
Store your camera in a cool, dry environment whenever possible.
Where to Buy a Reliable Canon G7X Mark II LCD Flex Cable
Not all replacement parts are manufactured to the same standard.
A poorly made ribbon cable may appear identical to the original, yet differ in material quality, connector dimensions, or flexibility. These differences can lead to unreliable connections, premature wear, or installation difficulties.
When purchasing a replacement LCD flex cable, look for the following:
Designed specifically for the Canon G7X Mark II
Accurate connector dimensions for a secure fit
High-quality flexible printed circuit (FPC) material
Durable construction for repeated LCD movement
Carefully inspected before shipping
Secure protective packaging to prevent damage during transit
Using a quality replacement part reduces the likelihood of repeat repairs and helps restore the camera's original performance.
Why Choose Photo Thrust?
At Photo Thrust, we understand how frustrating it is when a favorite camera stops working because of a small internal component.
That's why we focus on providing dependable replacement parts for photographers, repair technicians, and DIY enthusiasts.
Every replacement LCD flex cable is carefully inspected before shipment to help ensure proper fit and reliable performance.
In addition to LCD flex cables, Photo Thrust also offers a wide range of camera repair parts, including:
LCD screens
Lens flex cables
SD card reader slots
USB and HDMI port covers
Battery compartment components
Mode dial assemblies
Button flex cables
Rear housing replacement parts
Other internal repair accessories for popular Canon camera models
Whether you're repairing a Canon G7X Mark II for yourself or helping a customer restore their camera, choosing high-quality replacement parts can make the repair process smoother and more reliable.
Final Thoughts
A damaged LCD flex cable doesn't necessarily mean the end of your Canon G7X Mark II.
In many cases, symptoms such as a black screen, intermittent display, flickering image, or an unresponsive touchscreen can be traced back to a worn ribbon cable rather than a failed LCD panel.
With the proper tools, a clean workspace, and careful attention to detail, replacing the LCD flex cable is a repair that many DIY users can complete successfully.
The key is patience.
Take photos throughout the disassembly process, organize every screw, handle each ribbon cable with care, and never force a connector. Most importantly, always test the camera before completing final reassembly.
By following the procedures and repair tips outlined in this guide, you can restore your Canon G7X Mark II to full working condition while avoiding many of the common mistakes that lead to unnecessary damage.
A successful repair not only saves money but also extends the life of a camera that continues to be a favorite among photographers and content creators around the world.
Frequently Asked Questions (FAQ)
1. How do I know if my Canon G7X Mark II LCD flex cable is damaged?
Common symptoms include a black screen, flickering display, white screen, distorted images, or a display that only works when the LCD is held at a certain angle. These issues often indicate a worn or damaged ribbon cable rather than a faulty LCD panel.
2. Can I replace the LCD flex cable myself?
Yes. If you have experience working with small electronics and use the correct tools, replacing the LCD flex cable is a manageable DIY repair. The most important step is handling the tiny flip-lock ribbon cable connectors carefully.
3. How long does the repair take?
For someone with basic repair experience, the replacement usually takes 45 to 90 minutes. First-time DIY users should allow up to two hours and work slowly to avoid damaging delicate components.
4. Do I need to solder anything?
No. The Canon G7X Mark II LCD flex cable connects using ZIF (Zero Insertion Force) connectors, so soldering is not required.
5. What is a ZIF connector?
A ZIF connector is a small socket with a hinged locking latch that secures the ribbon cable. The latch must be opened before removing or installing the cable and closed afterward to lock it in place.
6. What happens if I break the flip-lock connector?
If the locking latch or connector body is damaged, the ribbon cable may no longer make reliable contact with the motherboard. Repairing a broken connector often requires microsoldering or replacement of the motherboard connector.
7. Why does my screen only work when I move the LCD?
This is one of the strongest indicators of a failing LCD flex cable. As the cable bends around the hinge, damaged internal conductors may reconnect temporarily at certain angles.
8. My LCD is black, but the camera still takes photos. Is the flex cable the problem?
Very possibly. If the camera powers on, autofocus works, and photos are still being captured, the LCD flex cable is one of the first components that should be inspected.
9. Can a damaged ribbon cable affect the touchscreen?
Yes. The LCD flex cable carries both display and touch-related signals. A damaged cable can cause the touchscreen to become intermittent or completely unresponsive.
10. Should I replace the LCD screen and the flex cable together?
Not necessarily. If the LCD glass is intact and the display problems are caused by cable fatigue, replacing only the flex cable is usually sufficient. However, if the LCD panel is cracked or physically damaged, replacing both components may be the better option.
11. How can I avoid damaging the new flex cable?
Route the cable exactly as the original, avoid sharp bends, never pinch it beneath brackets, and ensure it moves freely through the hinge without excessive tension.
12. Why should I test the camera before fully reassembling it?
Testing before reinstalling every screw allows you to confirm that the ribbon cable is properly seated and that the display functions correctly. If an adjustment is needed, you can access the connector easily without repeating the entire disassembly process.
13. Can I reuse the original adhesive or tape?
If the original adhesive remains clean and securely attached, it can often be reused. If it has lost its adhesion, replace it with thin electronics-grade adhesive tape to keep the ribbon cable properly positioned.
14. How can I make my replacement LCD flex cable last longer?
Operate the LCD gently, avoid forcing the screen beyond its designed range of motion, keep the hinge area clean, and store the camera with the screen closed when not in use.
15. Where can I buy a replacement Canon G7X Mark II LCD flex cable?
Purchase from a trusted supplier that specializes in camera repair parts. Choosing a high-quality replacement designed specifically for the Canon G7X Mark II helps ensure proper fit, reliable performance, and long-term durability.
